LYNCH BAR MANIFOLDS & ACCESSORIES
Cover plates
STANDARD SPECIFICATIONS
Standard Materials:
Aluminum-6061T6 and Ductile-654512
Other Material Options:
Mild Steel or Stainless Steel
Maximum Pressure:
Alu 3,000 PSI, Duc 5,000 PSI
Special Finishes:
Black Oxide, Electroless Nickel Plating, Anodizing
Mounting:
UNC or Metric mounting bolt kits and required plugs are supplied as standard

APPLICATIONS

Autonomous Underwater Vehicle
Industrial Machinery - Cover plates can be used for periodic flushing of the hydraulic system. They can also be used to connect ports internally without the need of an extra directional valve.
Construction Equipment
Construction Equipment – The Lynch Cover Plate can be used to block off a bar manifold station of a feature that is no longer required.

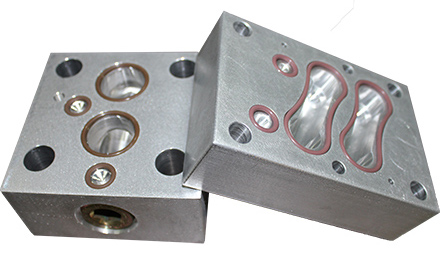

COVER PLATES
Shop Now

Cover plates are used in place of directional valves to completely block off a bar manifold station or to provide a means for flushing a manifold as determined by the internal port connections chosen. They are available in Parallel and series models.

FEATURES AND BENEFITS

  • Optional Gauge Port available on Pressure Port.
  • Internal passages maximized to match the interface port connection in order to minimize pressure drops and fluid velocities.
  • Special D05D valve pattern matches both D05H and D05HE
  • Cover plates with all external ports for relocating valves are available.
  • Special combinations of ports including X & Y ports are non-standard.
  • Servo Cover Plates are available.
  • Viton O-rings and locating pins are supplied as standard.

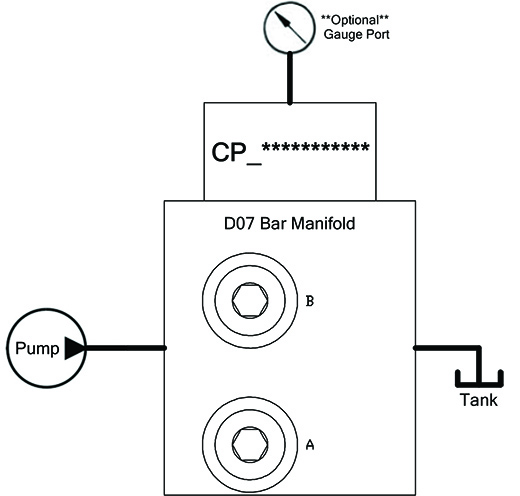

BLOCK DIAGRAM

Cover plate block diagram

BUILD A COVER PLATE

Type:
Type
Unselected
--
Unselected
--
Cover Plate
CP
Material
Material
Unselected
-
Unselected
-
Aluminum
A
Ductile Iron
D
Valve Pattern
Valve Pattern
Unselected
---
Unselected
---
D02 - ISO 4401-02-01 / NFPA T3.5.1
02G
D03 - ISO 4401-03-02 / NFPA T3.5.1
03G
D05 - ISO 4401-05-04 / NFPA T3.5.1
05G
Matches Both ISO 4401-05-05
(Euro) NFPA T3.5.1-D05 Alt A
and (USA Standard) NFPA T3.5.1-D05 Alt B
05D
D07 - ISO 4401-07-06 / NFPA T3.5.1
07G
D08 - ISO 4401-08-07 / NFPA T3.5.1
08G
Circuit Code
Circuit Code
Unselected
----
Circuit
Code
Unselected
----
All Ports Blocked
XXXX
P Connected to A, B Connected to T
PABT
P Connected to B, A Connected to T
PBAT
P Connected to T
PTXX
Gauge Port Code
Gauge Port Code
Unselected
--
Type
Size
Code
Unselected
--
None
None
AA
SAE
4
SB
NPTF
1/8"
NA
BSPP
1/8"
BA
BSPT
1/8"
TA
Metric
M10
MB
SAE
6
SC
NPTF
1/4"
NB
BSPP
1/4"
BB
BSPT
1/4"
TB
Location of Gauge Ports
Location of Gauge Ports
Unselected
-
Unselected
-
None
X
P Port
P
Mounting
Mounting
Unselected
-
Unselected
-
UNC Std for SAE & NPT
U
Metric Std for BSP & Metric
M
Welcome to the Part Number Generator
The part number you have selected is only available by special order. Please contact your Lynch representative for more details.
The part number you have selected is not a standard configuration. Please contact your Lynch representative for more details.
